Climate Seal™ Acoustic Series Window Insert

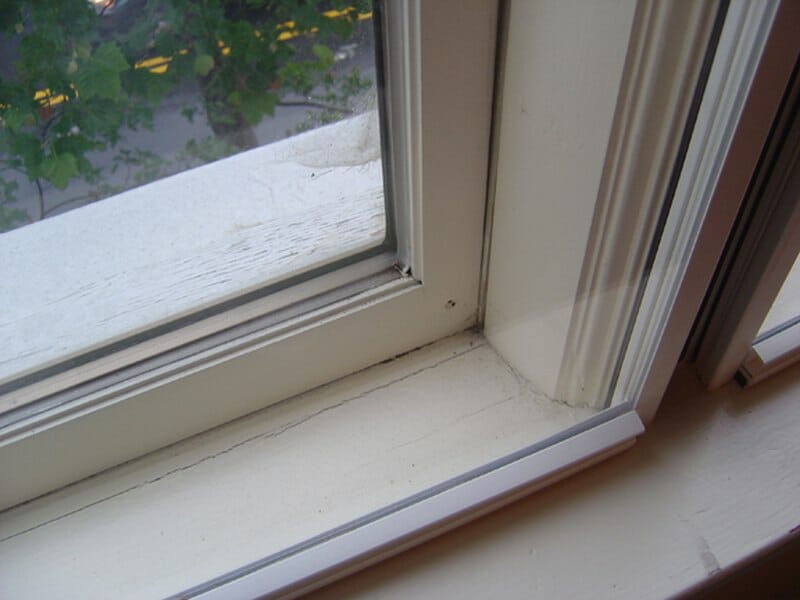

Climate Seal™ Acoustic Series window insert. Easily removed for cleaning of the primary window while retaining exceptional performance.
X-brand permanent acoustic window. 3X thicker aluminum fixed window eliminated the ability to access the primary window when needed. Performance not equivalent to Climate Seal™ Acoustic Series window insert.
Born from our original Climate Seal™ Thermal Series, the Climate Seal™ Acoustic Series window insert specifically focuses on sound abatement across all frequency levels with exceptional performance while maintaining its discreet look and superior thermal properties. While the Climate Seal™ Thermal Series abates sound by up to 60% from pre-existing levels, the Acoustic Series boasts up to 80% sound reduction with an STC rating as high as 49, which rivals or exceeds the performance of many other competitive products and does so at a significantly reduced cost and aesthetic impact.
The Climate Seal™ Acoustic Series model is an ideal choice for many residential, commercial, and historical applications. Whether you live on a busy street, airplane flight path, or wish to maintain the comfort level of your hotel guests, the Climate Seal™ Acoustic Series window insert will perform extremely well, regardless of the application. Other acoustical window products have you call for a secondary and permanent window layer. We feel this is excessive, bulky and unattractive without an appreciable improvement above and beyond our Climate Seal™ Acoustic Series system. The Climate Seal™ Acoustic Series window insert is easily removed in seconds for access to the primary window for cleaning or maintenance and is just as easily re-applied to protect you from irritating and excessive decibel levels.
Below is a comprehensive breakdown of our performance ratings and results. We've also included a “before & after” scenario on three different primary window applications to illustrate how effective the Climate Seal™ Acoustic Series can be when applied over your primary window. Just like all of our other Climate Seal™ family of products, the Acoustic Series is fully customizable. Custom paint colors and glazing options, wood veneers as well as custom shapes and sizes are all available to ensure performance and aesthetics are not compromised.
Main features
Functional
Strong, yet Lightweight
Custom fit
Unique “Bellows” Creates Tight Fit
Efficient
Keeps In Heat During Winter and Out During Summer
Test Data/Measuring Instructions
- Climate Seal Brochure
- Climate Seal Installation Guide
- Thermal Performance Data
- Climate Seal Inserts – R Value Increase
- SHGC Increase
- Download Measuring Instructions
- Drawings
- Safety Data Sheet – V2800
- Safety Data Sheet – V710
- Climate Seal Sound Rating – STC
- Climate Seal Washing & Storing Instructions
- Climate Seal Measuring Guide Dyn
- Climate Seal-Out of Square Form
- Climate Seal Arch Top Form.pdf
- Climate Seal Window- Inverted Inside Angle Mount
- Climate Seal Window- Standard Inside Angle Mount
| Climate Seal Sound Rating – STC | |||
|---|---|---|---|
| Window Assembly | STC* | Test | |
 |
Double Hung Window | 24 | |
| Double Hung Window w/Climate Seal Insert | 37 | ASTM E90 | |
 |
Triple Casement Window | 27 | |
| Triple Casement Window w/Climate Seal Insert | 44 | ASTM E90 | |
 |
Store Front/Hotel Fixed Window | 33 | ASTM E90 |
| Store Front/Hotel Fixed Window w/Climate Seal Insert – 2.5″ Airspace |
38 | ASTM E90 | |
| Store Front/Hotel Fixed Window w/Climate Seal Insert – 4.5″ Airspace |
46 | ASTM E90 | |
| Store Front/Hotel Fixed Window w/Climate Seal Insert – 6.5″ Airspace |
51 | ASTM E90 | |
| *STC (Sound Transmission Class) – a rating to represent how well a building partition attenuates airborn sound. The higher the STC number, the greater amount of sound that is lost. This rating targets a noise spectrum surrounding speech levels. | |||
